Title: Evolution of the airfoil,1908-1944. Creator: Unknown.

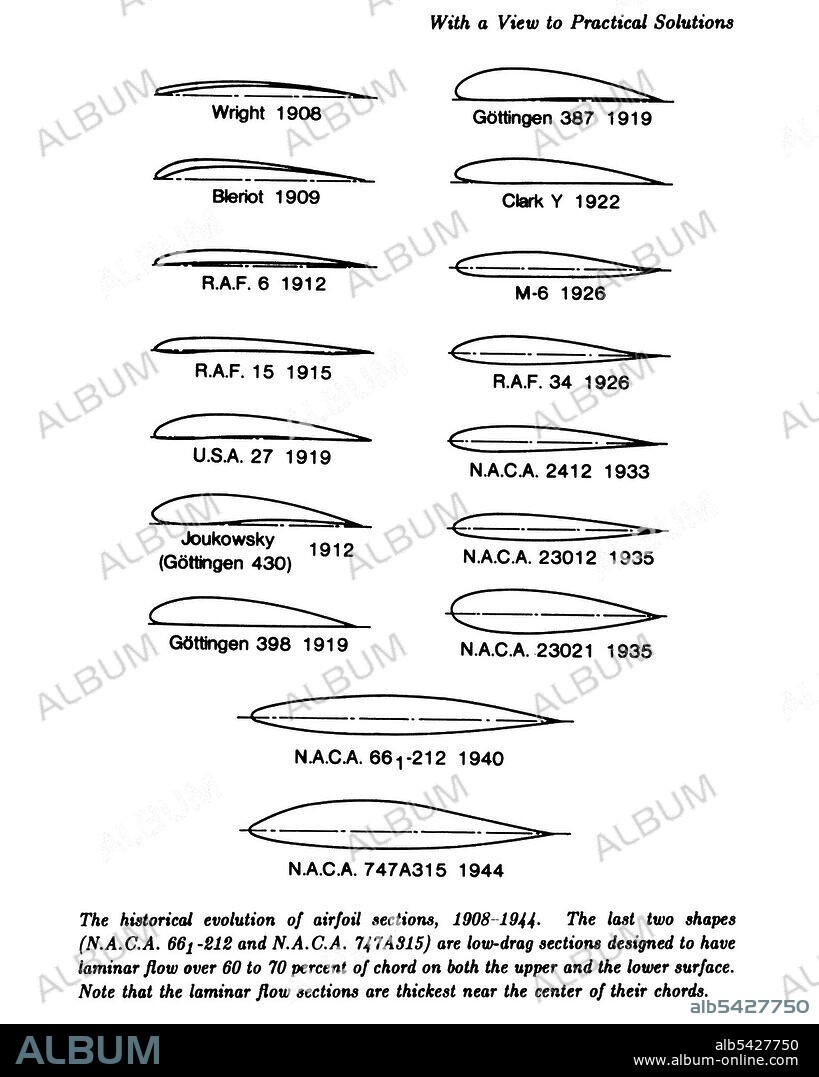

Caption: Evolution of the airfoil, 1908-1944. Diagrams showing the historical evolution of airfoil sections. The last two shapes are low-drag sections designed to have laminar flow over 60 to 70 percent of chord on both the upper and lower surface. Examples illustrated include designs by the Wright Brothers, the Aerodynamics Research Institute in Göttingen, Louis Bleriot, the Royal Air Force, and the National Advisory Committee for Aeronautics.
Personalities: WRIGHT BROTHERS • NACA
Technique/material: Photograph
Credit: Album / Heritage Space/Heritage Images
Releases: ? Model Release: No - ? Property Release: No
Rights questions?
Rights questions?
Image size: 1229 × 1536 px | 5.4 MB
Print size: 10.4 × 13.0 cm | 483.9 × 604.7 in (300 dpi)
